EX-8101P
100/1000/2500Base-T Port adapter
- Single-chip solution
- Integrated PCIe, MAC, and PHY minimizes board space and power utilization
- Audio Video Bridging (AVB) and PTP/1588v2
- EEE support
- IEEE P802.3bz (NBASE-T) 2.5G, 1G and 100M on Cat5e (or better) cables
- PCI Express Gen-2 x 1 Host Bus Interface
- Jumbo Frames (support 16383bytes)
- IPv4, IPv6/TCP/UDP checksum offload and segmentation Task-offload support.
- Support Protocol Offload (ARP & NS)
- Wake-on-LAN (WoL) power management

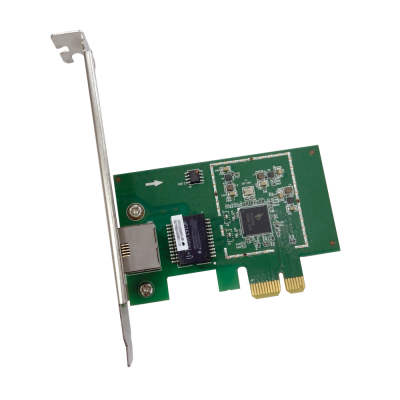

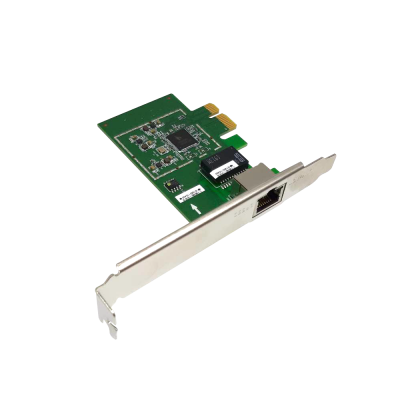

The 2.5G NIC Adapter EX-8101P design hosts the Realtek RTL8125AG designed for low-power, low-cost and single-port applications. Realtek Dragon devices, the RTL8125AG support 2.5 GigabitEthernet over copper, or 2.5GBASE-T, and are compliant with the NBASE-T specification and the new IEEE 802.3bz standard that was formally ratified in September 2016. In addition, both devices also support backward compatibility with 100MbE and Gigabit Ethernet.
The Realtek controller is designed with a PCI Express Gen2 x1,x2, x4 for optimal line rate performance connecting to the CPU on the system side
The software includes drivers for Windows (10, 8.x, and 7), Mac OS X, and Linux. Realtek also provides UEFI and PXE boot code, as well as ROM programming and Windows Installer utilities.
The Realtek controller is designed with a PCI Express Gen2 x1,x2, x4 for optimal line rate performance connecting to the CPU on the system side
The software includes drivers for Windows (10, 8.x, and 7), Mac OS X, and Linux. Realtek also provides UEFI and PXE boot code, as well as ROM programming and Windows Installer utilities.
Product EX-8101P
- IC
- Realtek8125AG
