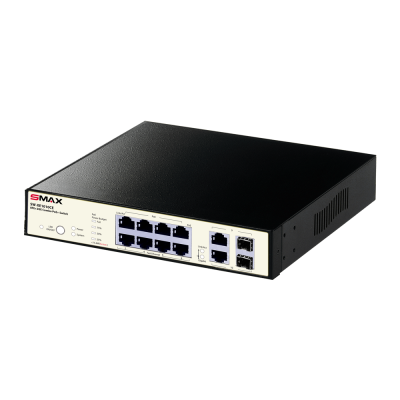

Enterprise Switch

SW-XE1010CE

8 port 10/100 base-T +2 port 10/100/1000 base-T

  • 8 x10/100 Base-T Ports
  • 2 x10/100 /1000Base-T Ports
  • Port LED indicators
  • System LED indicator
  • PoE system power budget LED indicators
  • DC Inlet (4-Pin Power Din Type)
  • Push button can do LED Intensity control, excluding Power LED
  • Factory Default button to back system configuration to default


SW-XE1010CE is the advanced fan-less Power-Over-Ethernet Switch supports 8 Fast Ethernet ports plus 2 Giga Ethernet ports; specifically designed for connecting to IP Camera, WiFi Access Point …devices. SW-XE1010CE supplies 90 Walt power budget for POE function. Under the power budget, each Fast Ethernet port (PSE) can support up to 30Walt power which is compliant with IEEE802.3at standard..
Product  SW-XE1010CE
Switch Controller
IC+1826D
CPU
IC+ IP210W
FE PHY
IP108 x1
GE PHY
IP1001 x 2
Flash Memory
2MB
PoE Chip
Microsemi PD69108
MCU
Microsemi PD69100
FAN
Fanless
