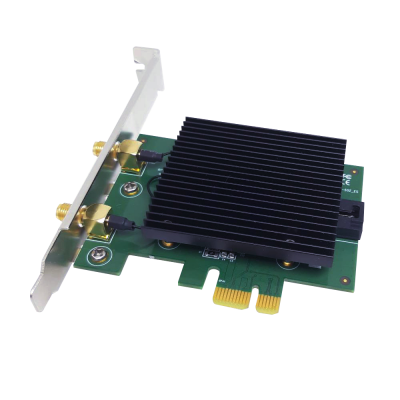

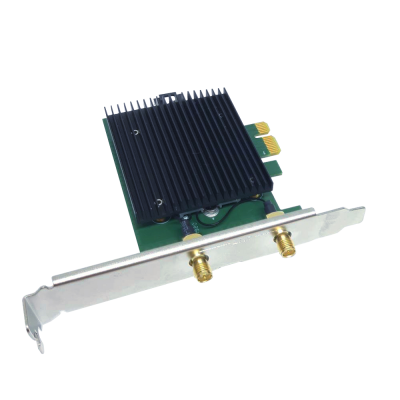

AX3000 WLAN with Bluetooth PCI-E Add On Card

  • Comply with IEEE 802.11a/b/g/n/ac/ax standards.
  • Supports dual band frequency- 2.4GHz / 5GHz
  • Wide 160MHz Channels-Next gen Wi-Fi and 2X Speed
  • Very high transfer data rate  – up to 574Mbps (2.4GHz) or up to 2402Mbps (5GHz).
  • Supports Bluetooth 5.0
  • Supports Wave-2 compliant MU-MIMO
  • Supports 64/128-bit WEP, WPA, WPA2 with IEEE 802.1x functions for high level of security
WiFi 6

Up to 574Mbps 2.4G and 2402Mbps 5G
IEEE 802.11a/b/g/n/ac/ax, 2T2R
Product EW-7122PBX V1.0A
Main Chipset
Intel AX200
Bus Type
PCI Express x1 interface
Frequency Band
2412~2472 MHz (Industrial Scientific Medical Band)
5150~5959 MHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, up to 144Mbps
11n (40MHz): MCS0-15, up to 300Mbps
11ax (40MHz): VHTMCS11, up to 574Mbps
11ax (160MHz): VHTMCS11, up to 2402Mbps
Output Power
11b(11M): 18 ±1.5 dBm
11g(54M): 15 ±1.5 dBm
11n(20MHz, MCS7): 15 ±1.5 dBm
11n(20MHz, MCS11): 15 ±1.5 dBm
11ax(20MHz, VHTMCS11): 11 ±1.5 dBm
11a(54M): 17 ±1.5 dBm
11n(40MHz, MCS7): 16 ±1.5 dBm,
11ac(160MHz, VHTMCS9): 14 ±1.5 dBm
11ax(160MHz, VHTMCS11): 12 ±1.5 dBm
Receive Sensitivity
11b(11M): -89 ± 2dBm
11g(54M): -76 ± 2dBm
11n(20MHz, MCS7): -75 ± 2dBm
11n(40MHz, MCS7): -72 ± 2dBm
11ax(20MHz, VHTMCS11): -63 ± 2dBm
11a(54M): -77 ± 2dBm
11n(40MHz, MCS7): -73 ± 2dBm,
11ac(160MHz, VHTMCS9): -60 ± 2dBm
11ax(160MHz, VHTMCS11): -55±2dBm
External Antennas R-SMA x 2
Windows 10
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Operating: 0~90%(NonCondensing,
Storage: Max. 95%(NonCondensing
